Pulling Machine, Casing Puller

Pulling Machine, Casing Puller

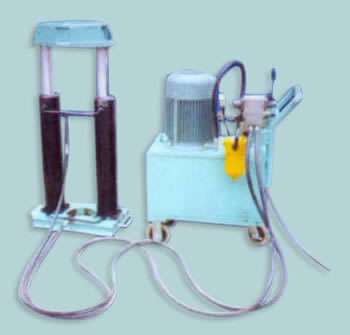

YB series hydraulic pulling machine or casting puller, an auxiliary equipment for rock and soil anchoring engineering, is used to pull up the casing pipe and drill rod from the hole. It is composed of a hydraulic pump, hydraulic cylinder, base, bracket and jaw, etc. The casting puller has light weight and is convenient for disassemble and transportation.

Our pulling machine is especially suitable for use in places like side slopes, tunnels and mountain area, etc.





Specifications of Pulling Machine, Casing Puller

Type YB-30 YB-50 YB-70
1. Pulling capability 30000kg 50000kg 70000kg
2. Cylinder stroke 500mm 500mm 500mm
3. System rated pressure 20Mpa 20Mpa 20Mpa
4. Motor power 5.5kw 5.5kw 5.5kw
5. Weight 250kg 280kg 300kg
6. Matching jaw size ￠73, ￠89, ￠108, ￠127, ￠146, ￠168, ￠178, ￠194

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional drilling rig manufacturer in China. We provide a wide range of products, including jet-grouting drilling rig, engineering crawler drilling rig, water well drilling rigs, and more. We also offer pulling machine, DTH drilling tool, pipe hammer machine, and other drilling tools, or drilling accessories.
