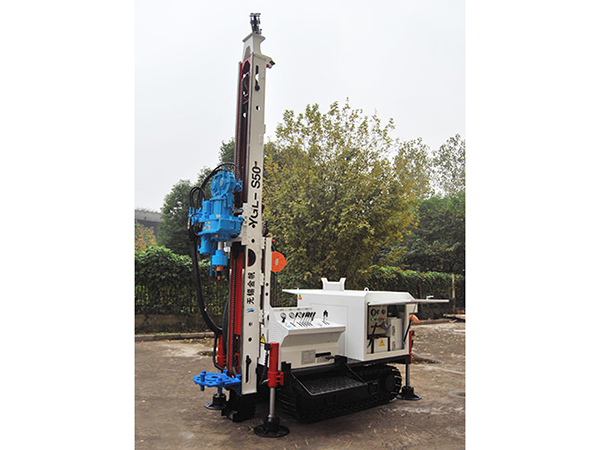

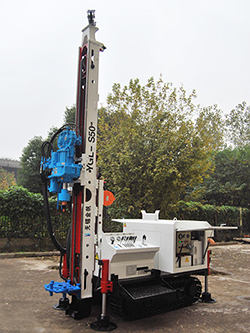

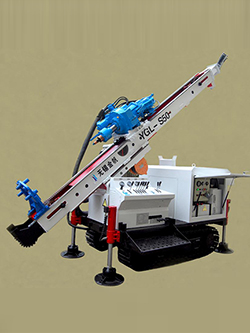

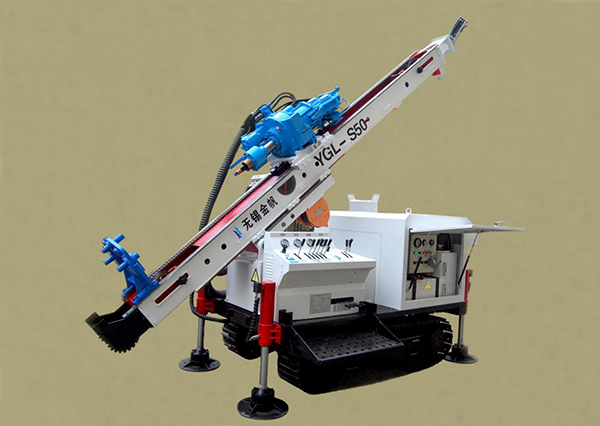

YGL-S50 Mini Sonic Drill

  • YGL-S100 Sonic Drilling Rig
  • YGL-S100 Sonic Drilling Rig

Application
Holes for investigating pollution of soil and groundwater
Holes for ground source heat pump
Holes for engineering geological exploration
Holes for water wells and hydrological observation

Main Features
As a heavy drilling rig with strong vibratory drilling capacity, it is flexible with compact structure. The acoustic power unit of high performance cost ratio is imported and mainly used for environmental pollution sampling. Featuring high drilling speed and low noise, the mini sonic drill can be used to investigate any pollution such as soil pollution, heavy metals in groundwater, dioxins and volatile organic compounds, and oil pollution.

Technical Parameters
Model YGL-S50
Capacity Nominal drilling depth m 50
Drilling diameter mm 50-110
Power unit Speed of rotator rpm 30;60
Torque of rotator Nm 3240;1620
Vibration frequency CPM 4000
Vibration force KN 38
Weight Kg 359
Winch Lifting force KN 11
Rope diameter* rope loading capacity mm*m 7*50
Feeding system Pressure KN 20
Pressing speed m/min 12.2;24.4
Drawing force KN 50
Drawing speed m/min 7.4;14.8
Feeding stroke mm 2300
Diesel engine Power KW 46
Rotation speed rpm 2200
Machine weight T About 3.8
Dimensions Transportation L*W*H(mm) 5600*1450*2200
Working L*W*H(mm) 3400*1450*5600
