Hydraulic Surface Core Drilling Rig

Hydraulic Surface Core Drilling Rig

Application
YDX-1200 hydraulic surface core drilling rig provides us an ideal diamond core drilling solution in metal and nonmetal solid deposit exploration industry. It can also be used for carbide bit core drilling. It is used to bore vertical holes as well as inclined holes, and is also suitable for use in engineering industry for hydrology water well drilling, petroleum and gas field exploration, cement grouting for dike and dam construction, and tunnel ventilation system and water draining system construction, etc.

Main Features
YDX-1200 hydraulic exploration drilling rig is designed with a fully hydraulic driven power head. Compared to traditional spindle type mechanical driven rigs, this one has advantages as given below.
1. The drilling equipment has high rotary speed, reasonable rotary speed range, various rotary speed grades and big torque in low speed. Hence, it is very suitable for small diameter diamond bit core drilling. Meanwhile, it can meet the requirements of large diameter carbide bit core drilling and the hole-making requirements for variety of engineering projects.
2. YDX-1200 hydraulic exploration core drilling rig has a long travel which is helpful to reduce the reversion frequency of drilling rod, avoid block of drilling rod and thus improve productivity.
3. It has a simple structure, a light weight and is convenient to remove, so as to make the replacement process easily.
4. Convenient, simple, flexible and reliable operations helps reduce labor intensity greatly.
5. It needn't to be provided with a special inclined tower when drilling inclined holes. It can also realize raising two rods at one time.
6. The installation and mounting of the drilling rig is convenient and fast, as there is no need for specialized drill tower. This largely reduces the preparation time.
7. The drilling rig can be equipped with different types of chassis as per customers' requirements, so we can offer skid type (separated type), trailer type and crawler drilling rigs.

Specifications

1. Working range
(A) Drilling depth with rod diameter NQ (75): 1200 m
(B) Drilling depth with rod diameter HQ (95): 850 m
(C) Drilling depth with rod diameter PQ (114): 600 m
(D) Drilling hole inclined angle: 0~-90º
2. Drill head output
(1). Rotary speed and rotational torque
I. Rotary speed / rotational torque: 113-165Rpm / 5270-3620Nm
II. Rotary speed / rotational torque: 237-345Rpm / 2520-1733 Nm
III. Rotary speed / rotational torque: 437-636 Rpm / 1367-940Nm
IV. Rotary speed / rotational torque: 750-1100 Rpm / 795-546Nm
(2). Feeding stroke : 3500 mm
(3). Feeding force: 55kN
(4). Lifting force: 108kN
3. Hoist
(1) Main hoist
lifting capacity : 75 KN
Lifting speed : 40 m/min
(2) Wire line hoist
lifting capacity : 12 KN
Lifting speed : 120m/min
4. Engine
Engine (Diesel) rated power : 125kw
5. Weight
Total weight of the machine
Total weight of YDX-1200T : About 7800kg
Total weight of YDX-1200T : About 6600kg
6. Optional equipment
Mud pump (optional): BW-150
7. Chassis
Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted (According to customer's requests)

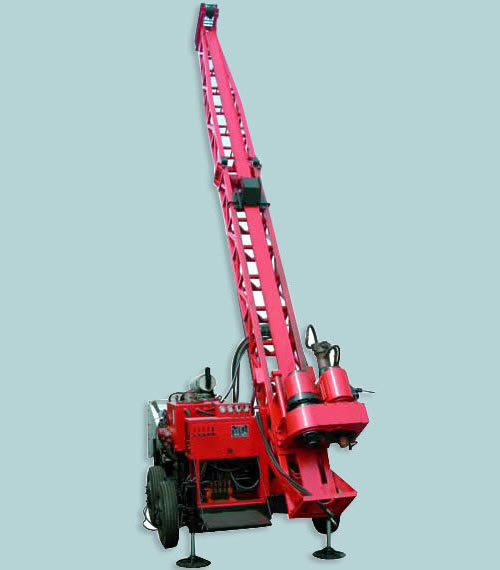

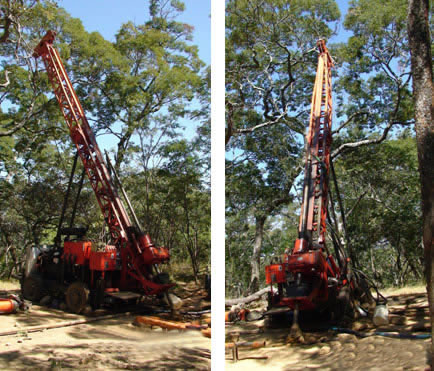

DX-1200T Trailer Mounted Core Drilling Rig, Surface Exploration Drilling Riging Rig

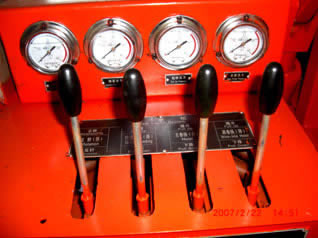

Original Imported Operation Valve

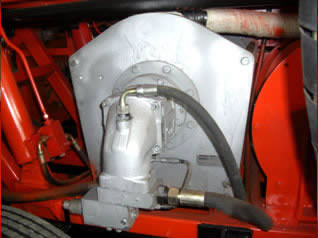

Original Imported Main Winch


Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional exploration hydraulic surface core drilling rig manufacturer in China. We provide not only core drill, but also engineering crawler drilling rig, anchor drill rig, geothermal drilling rig, jet-grouting drilling rig, exploration drilling rig, and more.
