Spindle Core Drilling Rig

Spindle Core Drilling Rig

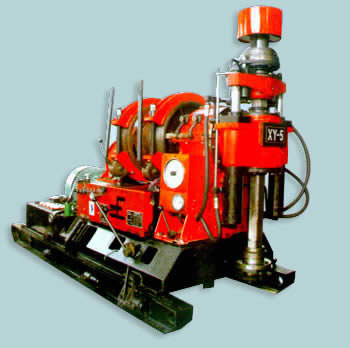

XY-5 spindle core drilling rig is suitable for conventional and slim-hole diamond drilling in hydrogeological and coal field exploration industries. It can drill vertical and angle holes.

Main Features
1. The spindle of the drilling equipment offers high rotational speed and thus provide the equipment with wide range of drilling speed. Reverse rotation is also allowable.
2. The drilling rig is equipped with a built-in hydraulic brake, which ensures smooth and safety lowering of drill string and simple operation. The brake bands offer long service life.
3. With wide base frame and low center of gravity, the rig comes with steady drilling performance.
4. Both conventional and large inner diameter spindles are available for customers to choose from.
5. The special slide valve is provided in the hydraulic system for the break of tool.

Specifications
Rod OD (mm)
For conventional swivel head: ф50, ф60
For large ID swivel head: ф89
Drilling Capacity (m): 1000-1500
Torque (kN.m): 0.39-5.64
Angle: 900-800
Spindle speed (r/min)
Forward: 85, 166, 261, 294, 335, 577, 906, 1232
Reverse: 65, 225
Max. hoisting capacity (kN): 135
Max. single line hoisting capacity (kN): 40
Dimensions (L×W×H) (mm): 3190×1495×2140
Weight (kg): 3500
Power unit
Electric motor: 55kw 1470r/min
Diesel engine: 80HP 1500 r/min

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional spindle core drilling rig manufacturer in China, we also offer hydraulic crawler water well drilling rig, hydraulic jet-grouting drilling rig, hydraulic crawler drilling rig, hydraulic geothermal drilling rig, underground drilling rig, and more.
