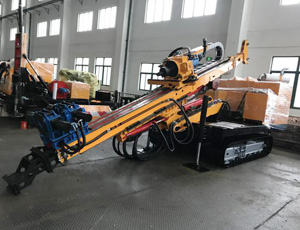

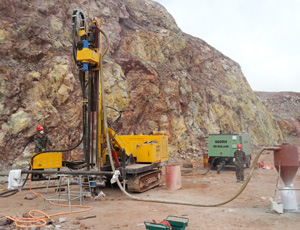

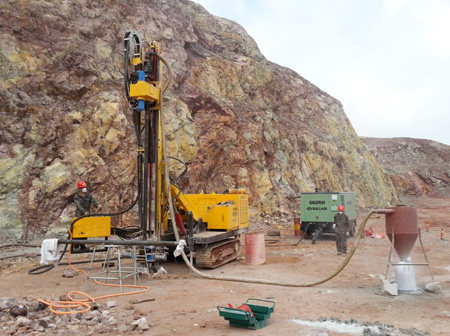

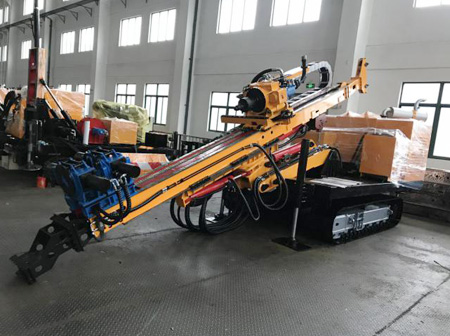

YSL-180 Reverse Circulation Drilling Rig

Application
YSL-180 reverse circulation drilling rig is mounted on a crawler chassis, driven by full hydraulic system. This drilling equipment is equipped with power head, which is widely used for vertical or inclined drilling.

Drilling techniques way of the following:

• Dry drilling
• Down-the-Hole hammer drilling
• Direct circulation- Mud Rotary
• DTH hammer drilling with casing
• Multi-medium reverse circulation composite drilling

YSL-180RC reverse circulation drilling rig is able to resolve the difficulty of boring in the stratums such as soft and loose cover ground condition, the cobble layer and also the bedrock fracture zone according to different drilling techniques ways. Therefore, it has a very wide range of uses in well drilling.

Technical specification

Model			YSL-180RC
Drill rig weight (crawler mounted)		kg	9500
Length × Width × Height (normal)		mm	6350×2200×2950
Ambient Temperature Range		°C	-10～38
Nominal Drill Depth		m	180
Drill Diameter		mm	130～320
Drill Hole Angle Range		°	-90～-5
Drill Head Output
Output Rotation Speed	Low speed	rpm	40/80
	High speed	rpm	70/140
Max. Output Torque		N.m	8500
Stroke of Power Head
Stroke		mm	3500
Thrust Force		kN	45
Stroke		kN	65
Mast
Sliding Stroke		mm	850
Oil Pump		Electromotor	Diesel
Output volume(big oil pump)	ml/r	71	63
Output volume(mini oil pump)	ml/r	28	25
Output volume(middle pump)	ml/r	63	50
Hydraulic Oil		L-HM46
Tank Capacity	L	220
Nominal Filtration Particle Size	μm	10
Max. Work Temperature	°C	65
Engine drive type Y225S-4+Y250M-4			6BTA5.9
Power	kW	37+55	132
Rotary Speed (Max.)	rpm	1500	2200
Track Chassis Base		PD135
Width of Pedrail		mm	400
Unit Pressure		MPa	＜0.05
Climb Ability		°	≤20
Air/Mud Hose Size
Ball Valve		in	1+1/2
Ball Valve		in	1+1/2
Inner Diameter of Hose		mm	45
Winch (optional)
Lift Force		KN	11
