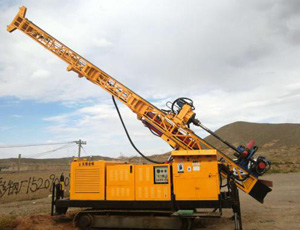

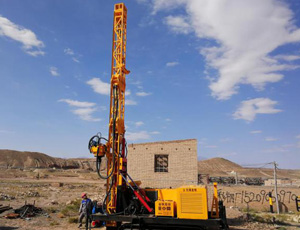

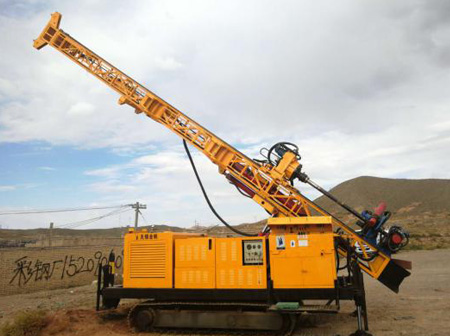

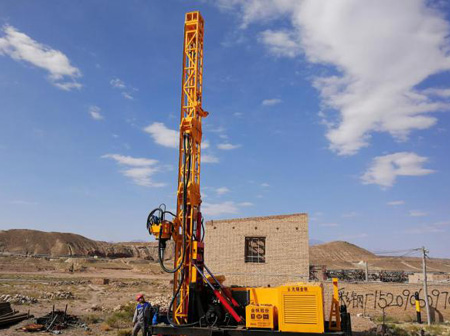

YSL-500 Reverse Circulation Drilling Rig

  •  YSL-500 Reverse Circulation Drilling Rig
  •  YSL-500 Reverse Circulation Drilling Rig

Application
YSL-500RC drilling rig is suitable for different drilling ways, so it is highly adaptable to all types of strata and complex working conditions. The RC drilling rig is able to resolve the difficulty of boring in the stratums such as soft and loose cover ground condition, the cobble layer and also the bedrock fracture zone. Therefore, it has a very wide range of uses.
The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole, small buildings foundation piles.


Drilling techniques way of the following:

  • Dry drilling
  • Down-the-Hole hammer drilling
  • Direct circulation- Mud Rotary
  • DTH hammer drilling with casing
  • Multi-medium reverse circulation composite drilling

YSL-500 reverse circulation (RC) drilling rig is suitable for different drilling ways, so it is highly adaptable to all types of strata and complex working conditions. The RC drilling rig is able to resolve the difficulty of boring in the stratums such as soft and loose cover ground condition, the cobble layer and also the bedrock fracture zone. Therefore, it has a very wide range of uses.


Technical specification
Model YSL-500RC
Drill rig weight (crawler mounted) kg 12000
Engine Power kW 132
Length × Width × Height (normal) mm 7650x2250x3217
Ambient Temperature Range °C -10~38
Drill Ability
Nominal Drill Depth m 500
Diameter of drill-hole finished mm 150
Drill head output
Max Output Torque N.m 12000
Output Rotation Speed (Continuity) rpm 30 / 60
Output Rotation Speed (Interval) rpm 52 / 104
Feeding Stroke mm 7000
Thrust Force kN 100
Lifting Capacity kN 60
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Main Winch
Pull Force of the first Layer kN 70
Rope Diameter mm 19
Rope Capacity m 80
Auxiliary Winch 6BTA5.9-C180
Pull Force of the first Layer kN 20
Rope Diameter mm 14
Rope Capacity m 60
Clamp Device Hole-through Diameter mm 340
Oil Pump Output Volume ml/r 87+63+25
Max. Pressure MPa 25
Tank Capacity L 320
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa <0.05
Climb Ability ° ≯20
