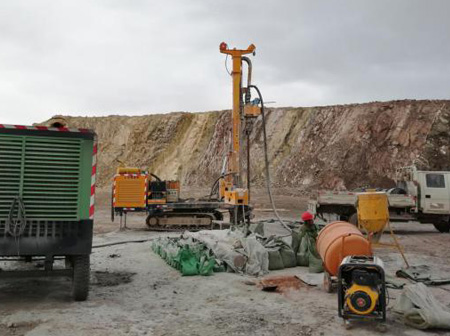

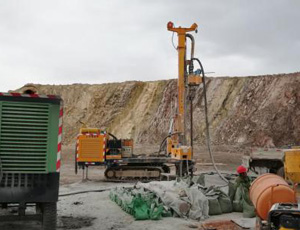

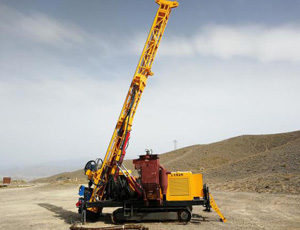

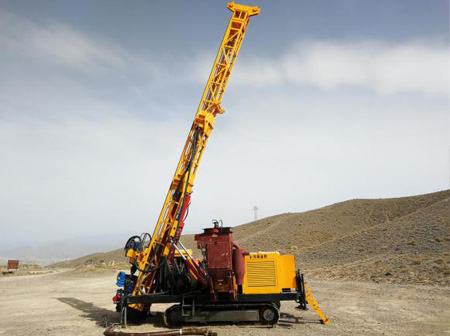

YSL-220 Reverse Circulation Drilling Rig

  •  YSL-220 Reverse Circulation Drilling Rig
  •  YSL-220 Reverse Circulation Drilling Rig

The YSL-220 RC drilling rig is mainly applied to RC drill/water well and observation well, geothermal hole, small buildings foundation piles.


Drilling techniques way of the following:

  • Dry drilling
  • Down-the-Hole hammer drilling
  • Direct circulation- Mud Rotary
  • DTH hammer drilling with casing
  • Multi-medium reverse circulation composite drilling

YSL-220 reverse circulation (RC) drilling rig is suitable for different drilling ways, so it is highly adaptable to all types of strata and complex working conditions. The versatile RC drilling rig is able to resolve the difficulty of boring in the stratums such as soft and loose cover ground condition, the cobble layer and also the bedrock fracture zone.


Technical specification
Model YSL-220RC
Drill rig weight (crawler mounted) kg 7500
Length × Width × Height (normal) mm 6300×2000×2500
Ambient Temperature Range °C -10~38
Nominal Drill Depth m 200
Drill Diameter mm 130~250
Drill head output
Output Rotation Speed rpm 40;80;70;140
Max Output Torque N.m 8500
Stroke of Power Head
Stroke mm 3800
Thrust Force kN 60
Lifting Capacity kN 85
Oil Pump
Output volume ml/r 63+50+25
Tank Capacity 220L
Engine drive type 6BTA5.9-C180
Power kW 132
