Application
YGL-C150 hydraulic impact top drive crawler drilling rig is widely used for pipe shed drilling in tunnel construction area, grouting reinforcing hole drilling, and the creating of drainage holes and large tonnage prestressed anchorage holes in geotechnical engineering projects, such as borehole on side slopes of dams, railways and highways, etc. In addition, the drilling rig is also ideal for creating of GSHP hole, water well, and water exploration hole and drilling holes for landside disaster and rock collapse prevention projects.
Features

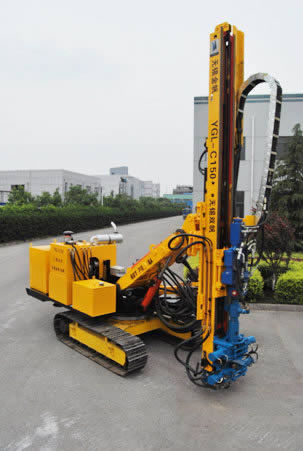

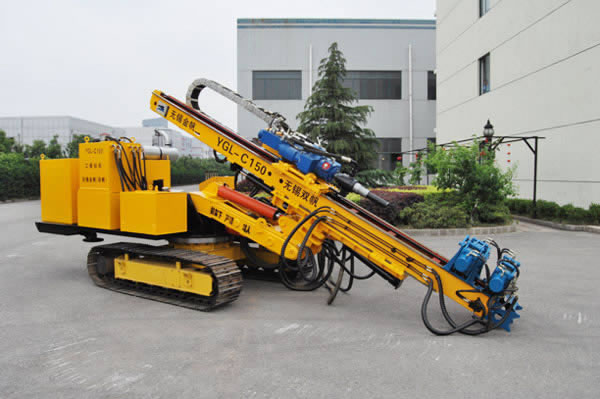

1. The hydraulic impact top drive crawler drilling rig is equipped with a Germany imported hydraulic rotary power head. This allows the rig to achieve multi-angle hole drilling and helps ensure reliable equipment performance.
2. Produces no dust pollution and requires no air compressor while drilling into the incompact ground area, the gravel layer and fragment rock stratum.
3. Special casing drilling technique ensures fast hole-creating speed, allowing us to finish hole drilling projects as soon as possible.
4. As for complex ground conditions, the hydraulic impact top drive crawler drilling rig can use dual-tube rotating drilling method so as to make hole stable and make slip casting easy.
5. Our hydraulic drilling rigs can be applied for different drilling methods and are ideal for variety of ground conditions, especially incompact ground layer, the gravel layer, and the fragment rock stratum.
Specification
| Hydraulic Impact Top Drive Crawler Drilling Rig | YGL-C150 | |
| Total Weight | kg | 7500 |
| Length*Width*Height (Work Type) | mm | 6100×2100×2350 |
| Environmental Temperature | ℃ | -10~38 |
| Nominal Borehole Depth | m | 150~80 |
| Borehole Diameter | mm | 130~250 |
| Hole Angle Range | ℃ | -90~15 |
| Horizontal Drilling Range | mm | 2050~3050 |
| Power Head (Germany imported) | Unit | Standard | Rotary speed |
| Output SpeedⅠ | rpm | 32 | 60 |
| Output TorqueⅠ | N.m | 9000 | 7500 |
| Output SpeedⅡ | rpm | 64 | 120 |
| Output TorqueⅡ | N.m | 4500 | 3500 |
| Impact Hammer | |||
| Impact | N.m | 400 | |
| Impact Frequency | Min-1 | 1800 | |
| Power Head Feeding | ||
| Feed Travel | mm | 3500 |
| Thrust Force | kN | 45 |
| Lifting Capacity | kN | 60 |
| Mast | ||
| Slide Stroke | mm | 400 |
| Swing angle range | º | -30~90 or -90~30 |
| Power Type | Cummins diesel engine | |
| Power | kW | 75 |
| Rotate speed | rpm | 2000 |
| Fuel capacity | L | 150 |
| Crawler Chassis | PD135 | |
| Width of crawler chassis | mm | 400 |
| Ground pressure | MPa | <0.05 |
| Turning Range of Platform | º | -30~Right 90 or -90~30 |
| Climbing Ability | º | ≤20 |
The hydraulic impact top drive crawler drilling rig can be optionally equipped with:
1. Hydraulic winch
2. Mud pump or Centrifugal pump
Jinfan reserves the right to change the above specifications without prior notice.
