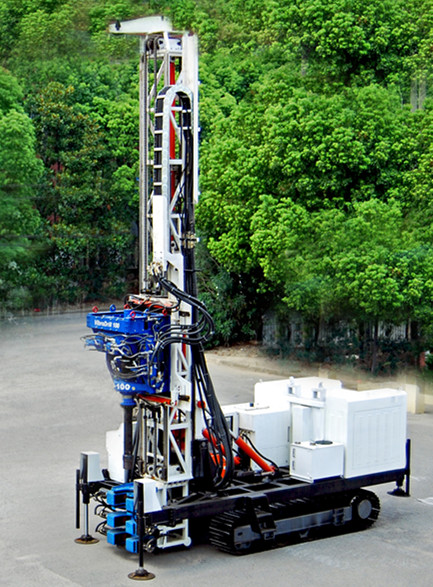

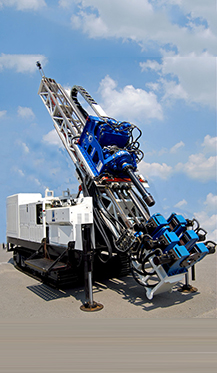

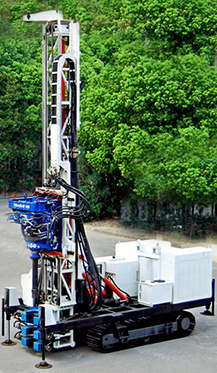

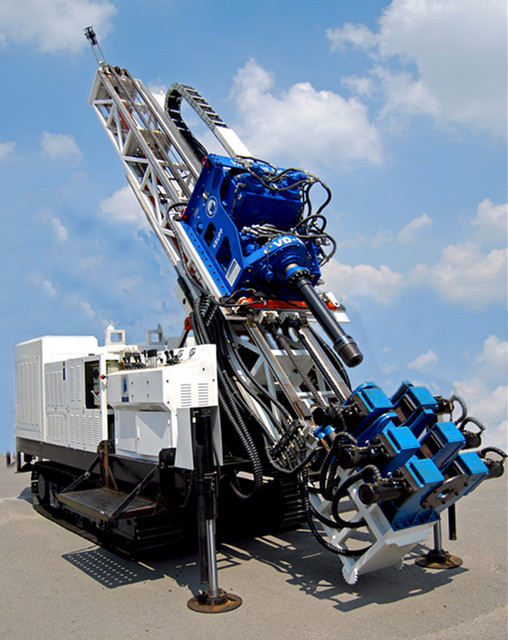

YGL-S200 Sonic Drill

  • YGL-S100 Sonic Drilling Rig
  • YGL-S100 Sonic Drilling Rig
  • YGL-S100 Sonic Drilling Rig

Application
Holes for engineering exploration
Holes for environment protection investigation
Holes for ground source heat pump
Holes for alluvial gold exploration
Holes for inspection of dams and tailings
Holes for oceanographic engineering investigation
Holes for water wells

Main Features
YGL-S200 sonic drill is a heavy-duty drilling rig with strong vibratory drilling capacity. It has the best performances and wide application. It is applied to drilling prospecting holes in deep and complex stratum for engineering exploration, environment protection investigation, ground source heat pump, alluvial gold exploration, inspection of dams and tailings, oceanographic engineering investigation and water wells.

Technical Parameters
Model YGL-S200
Capacity Nominal drilling depth m 100-200
Drilling diameter mm 76-168
Drilling angle 0-90

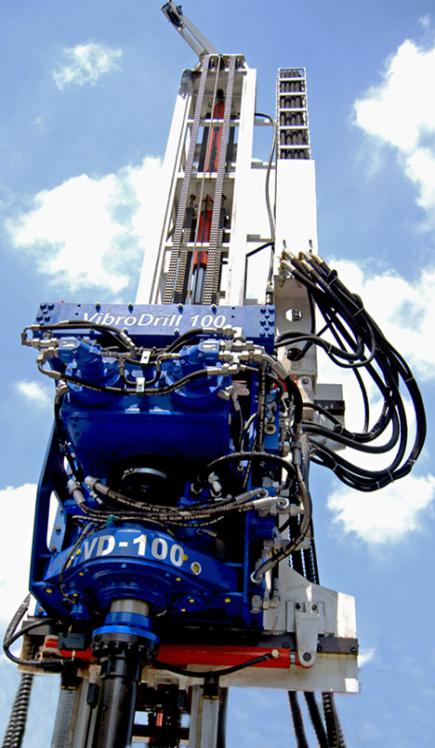

Power head Rotation speed of rotator rpm 0-52/103
Torque of rotator Nm 9300/3900
Vibration frequency CPM 6000
Vibration force KN 200
Weight Kg 1800
Winch Lifting force KN 25
Rope diameter* rope loading capacity mm*m 7*50
Feeding system Pressure KN 50
Pressing speed m/min 11.3;72
Drawing force KN 75
Drawing force m/min 7.8;50
Feeding stroke mm 3500
Diesel engine Power KW 160
Rotation speed rpm 2200
Machine weight T 12
Dimensions Transport L*W*H(mm) 8130*2300*3270
Working L*W*H(mm) 5130*2300*8130
