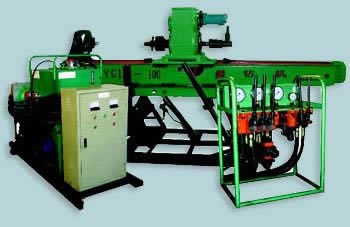

Anchor Drilling Rig

Anchor Drilling Rig

Application
YG-100 anchor drill rig comes with a complete hydraulic power head. It is commonly used to create large tonnage prestressed anchorage holes for side slope construction of impounding reservoir in hydropower stations, railway and highways, and drainage holes. It can also be used in construction projects for preventing geologic calamity such as landslide disaster and rock collapse, etc. In addition, the drilling equipment can be used to drill small sized water well and high pressure jet grouting hole.

Features
1. The anchor drill rig has great drilling capacity, wide range of application, fast drilling speed, and high drilling efficiency, as well as good capability of dealing with accidents.
2. The output spindle of the top drive power head is designed with an extension mechanism (Chinese patent number:ZL03222451.6), which can effectively protect drilling tools.
Through setting the power head and hole's top plate toward the opposite direction, the drilling rig can be used to create elevation angle holes and create holes with larger inclination range.
3. A set of front-mounted adjustable columns on drill frame is used for adjusting the height of mast front-end, which makes it convenient to align with hole site. (Chinese patent number:ZL02264791.0)
4. The anchor drill rig comes with separated structure design, so it can be simply assembled and disassembled and is convenient for transportation. In addition, it can achieve remote control operation and is an ideal solution to reduce operators' working intensity during drilling work.
5. Equipped with imported hydraulic motor and other key components acquired from Chinese reputed enterprises, the anchor drill rig is provided with stable running performance, reliable quality and long service life.
In addition, the wearing parts of the drilling equipment have good interchangeability due to their high grade of standardization and universal, which makes equipment maintenance convenient.
6. This anchor drilling rig is fully hydraulic driven and can achieve stepless speed setting. It is simple for operation, convenient for maintenance and has few wearing parts.
7. The anchor drill rig can be used for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling etc.

Main Technical Specifications of Anchor Drilling Rig YG-100
1. Drilling hole diameter: φ110~φ250mm
2. Drilling hole depth: 120~60m
3. Drilling angle: 0~180º
4. Speed of power head: 5~42(slow) r/min; 5~90 (fast) r/min
5. Max. torque of power head: 6000Nm
6. Travel of power head: 1800mm
7. Lifting capacity of power head: 55kN
8. Feeding capacity of power head: 40kN
9. Mast moving distance: 500mm
10. Output of motor: 37kW
11. Rated pressure of hydraulic system: 18Mpa
12. Total weight: approx. 2500kg
13. Weight of the largest part: 300kg
14. Overall dimension (L×W×H): 3450×1750×1500mm

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional anchor drill rig manufacturer in China, we also offer underground drilling rig, engineering crawler drilling rigs, geothermal drilling rig, exploration drilling rig, core drill, water well drilling rigs, and more.
