Drill Rod, Drill Pipe, Drill Stem

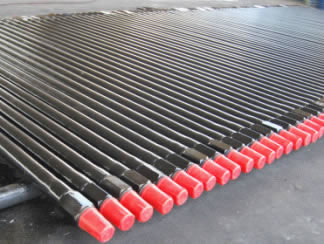

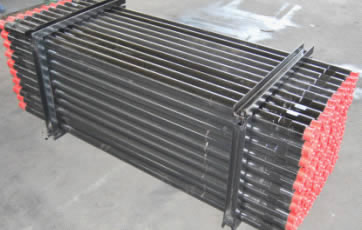

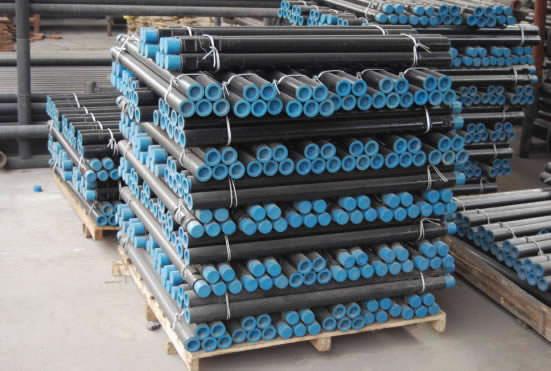

External flush drill rod is used for percussion rotary drilling with down-the-hole (DTH) hammer (including hydro-hammer and pneumatic-hammer). High rigidity, good sealing ability and uniform outer diameter are structure feature of this drill rod. Therefore, it has advantages of low rotary torque and resistance.

Main dimensions of this drilling tool is given below.
Φ50×1.0, Φ50×1.5, Φ73×1.0, Φ73×1.5, Φ89×1.0, Φ89×1.5, Φ114×1.0, Φ114×1.5
We can also manufacture the external flush drill pipe according to customer's requirements.

Technical Parameters of Dill Stem
Standard external flush drilling rod

Drill rod diameter(mm) Φ50 Φ73 Φ89 Φ114
Couplers diameter (mm) Φ50 Φ73 Φ89 Φ114
Stroke Length(mm) 1000; 1500; 2000; 3000; 1000; 1500; 2000; 3000; 4000;6000; 1000; 1500; 2000; 3000; 4000;6000; 1000; 1500; 2000; 3000; 4000;6000;
Connection between rod and couplers Argon arc welding; Friction welding;
Thread of rod couplers M42*10*1.5 Jinfan Tailor made; API 2-3/8" REG; API 2-7/8" IF API 3-1/2" REG; API 2-1/2" IF
Available drilling rig 1000~1500mm:YG-30; YG-50;YG-60; YG-70; YG-80; YG-100; YGS-120; 1000~2000mm: YGL-80; YGL-80Q; YGL-100; YGL-100Q; YGL-100A; YGSL-120; YGL-150; 1000~3000mm: YGL-100R; YGL-150R; YGSL-120R; 1000~6000mm: YSL-300; YSSL-300; YSL-600

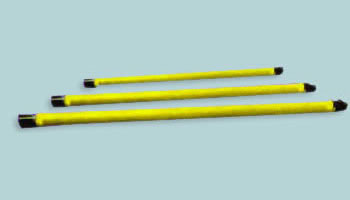

Jet grouting drill rod

Drill rod diameter (mm) Φ42 Φ50 Φ60 Φ60 Φ89
Couplers diameter (mm) Φ57 Φ65 Φ65 Φ60 Φ89
Stroke Length (mm) 1000; 1500; 2000; 3000; 1000; 1500; 2000; 3000; 1000; 1500; 2000; 3000; 1000; 1500; 2000; 3000; 4000; 6000; 1000; 1500; 2000; 3000; 4000; 6000;
Connection between rod and couplers Right hand fine thread Argon arc welding;
Jet grouting rod type Single Tube Diplex tube Triplex tube
Available drilling rig MG-50AX; YG-20X; YGL-20X; MG-50AX; YG-20X; YGL-20X; MG-50AX; YG-20X; YGL-20X; GXP-30; MG-50AX; YG-20X; YGL-20X; GXP-30; YG-20X; YGL-20X; GXP-30;

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional drilling rig manufacturer in China. We provide a vast variety of products, including core drill, water well drilling rig, jet-grouting drilling rig, engineering crawler drilling rig, and more. We also offer a wide array of drilling tools and drilling accessories, such as external flush drilling rod, pipe hammer machine and pulling machine.
