Hydraulic Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

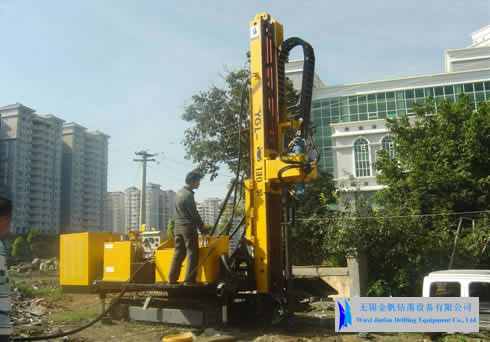

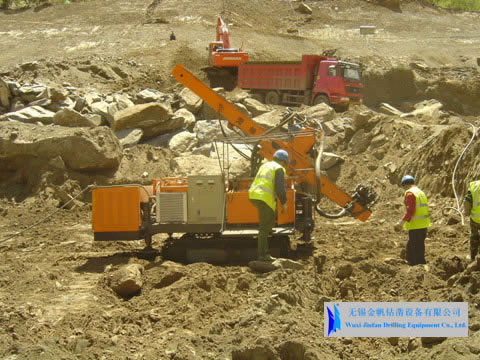

YGL-130 drilling rig comes with a fully hydraulic power head (top drive) and crawler traveling mechanism. It is mainly applied in the drilling of anchoring holes for high rise buildings' deep basement foundation, drainage holes and large tonnage pre-stressed anchorage holes for various geotechnical engineering projects including side slope construction of dams, railway and highway, etc., guide holes for high pressure jet grouting in gravel strata, and blast holes. Also, the multifunctional drilling rig is used for creating of anti-floating anchoring hole, the foundational reinforcing hole of interior architecture, the grouting reinforcing hole, the reinforcing hole of road or dam foundation and the anchoring hole for landslide prevention projects.

1. With large rotary torque and long feed travel, the hydraulic drilling rig comes with high hole drilling speed and high working efficiency.
2. The output spindle of the power head is designed with an extension mechanism (Chinese patent number: ZL03222451.6), which effectively protects the drilling tools.
3. The power head of the hydraulic crawler drilling rig utilizes hydraulic gear-shifting mechanism which ensures quick, convenient and reliable gear-shift.
4. Features such as our hydraulic drill pipe clamp and wrench devices ease the workload of operators, as they are designed to accomplish tasks that typically had to be done manually.
5. The hydraulic crawler drilling rig is mounted on a track chassis with a turning platform mechanism, which makes moving and traveling convenient.
6. The key hydraulic elements are all acquired from national and international famous enterprises. This ensures the reliable performance and durability of the drilling equipment.
7. The machine is suitable for a variety of drilling technique and methods, such as the rotary drill, auger drill, air drive DTH hammer impact and so on.
8. The drilling rig can be installed with an optional rod lifting device to connect drill rods.

1. Hole Depth (m): 130
2. Borehole Angel(º): -90~-5
3. Hole Diameter (mm): Ф110~250
4. Drill Rod Standard (mm): Ф89×2000, Ф127×2000
5. Power Head Rotary Speed (forward / reverse) (rpm):
Single pump output: 21 /42; 48/96
Double pump output: 35/70; 79/158
6. Power Head Max Output Torque (Nm) : 7500
7. Power Head Feed Travel (mm): 3500
8. Max. Power Head Lifting Capability (kN): 65
9. Max. Power Head Thrust Force (kN) : 45
10. Mast Sliding Compensating Stroke (mm): 800
11. Turning Range of Platform (º) : 360º
12. Climbing Ability (º) : ≤20º
13. Engine power(Either One)
Diesel power (kW) : 71 @ 2000rpm (4BT3.9-C100)
Electric power (kW): 55 @ 1470rpm (Y250M-4)
14. Crawler chassis PD101
Width of crawler board (mm): 350
Unit ground pressure (Mpa): < 0.05
15. Overall Dimension (transport condition) (mm) : about 6300×2000×2500
16. Total Weight (kg) : about 6000

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional hydraulic crawler drilling rig manufacturer in China, we also offer hydraulic crawler water well drilling rig, hydraulic geothermal drilling rig, underground drilling rig, exploration hydraulic core drilling rig, hydraulic jet-grouting drilling rig, and more.
