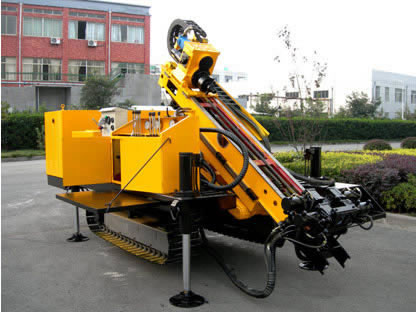

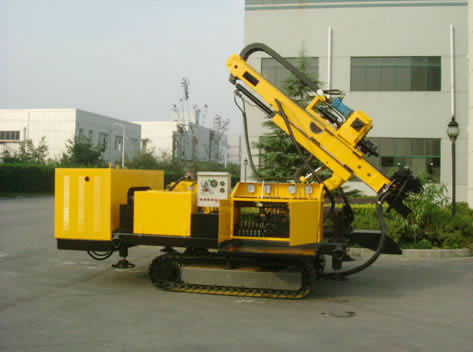

Hydraulic Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

Application
YGL-80Q drilling rig is a kind of track chassis drilling machine with full hydraulic power head. It is mainly used for creating holes for ground source heat pump system. Also, it is applied in drilling of large tonnage prestressed anchorage holes for side slope construction of dams, railway and highway, etc., the high-pressure jet grouting hole in the gravel layer and demolishing hole.

Features
1. The hydraulic crawler drilling rig is easy to move and comes with precise hole-center alignment.
2. The machine chassis is a steel crawler track. This design allows the drilling equipment to pose a small pressure on earth and have a large load-withstanding capacity.
3. Using hydraulic parts from national and international famous brands, the drilling rig comes with reliable performance.

Main Technical Specifications
Hole depth: 80~100m
Hole diameter: Ф220~130mm
Drill rod: Ф89×1500mm
Drilling angle range: 0-120º
Output rotary speed of power head (rotate/reverse): 5-180rpm
Rating output torque of power head: 3500Nm
Feed travel of power head: 1800mm
Sliding stroke of mast: 500mm
Max. lifting capability of power head: 45kN
Max. thrust force of power head: 30kN
Range of the horizontal-hole's height: 1800~2060mm
Max. inner diameter of clamp: 185mm
Platform turning range : 360º
Climbability : 20º
Walking speed : 1.5km/h
CUMMINS diesel power : 70kw
Length × Width × Height (reduce): 2800mm×2000mm×2200mm
Total weight : 3800kg

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional hydraulic crawler drilling rig manufacturer in China. Besides engineering crawler drilling rig, we also provide core drill, jet-grouting drilling rig, exploration drilling rig, anchor drill rig, underground drilling rig, and more.
