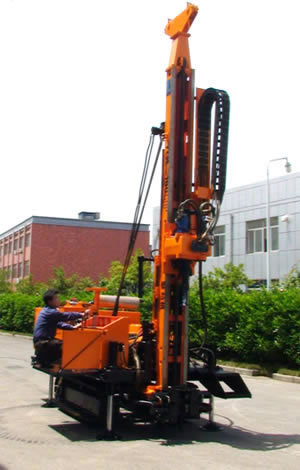

Hydraulic Crawler Geothermal Drilling Rig

This product has been discontinued and removed from our shelves.

YGL-100R drilling rig is equipped with fully hydraulic power head. It is mainly applied for the drilling of geothermal hole for GSHP system. It is also used for creating of drainage hole and large tonnage prestressed anchorage hole for various geotechnical engineering projects including side slope construction of dams, highways, and railways, etc., guide holes for high pressure jet grouting in gravel layer, and blast hole, etc.

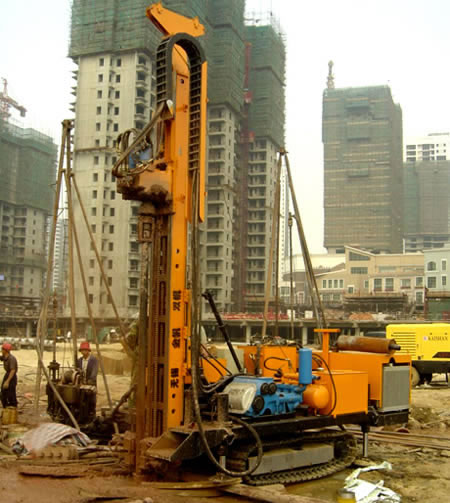

Additionally, the hydraulic crawler geothermal drilling rig is ideal for making anchoring holes for high rise buildings' deep basement foundation, anti-floating anchoring holes, foundational reinforcing hole of interior architecture, the grouting reinforcing hole, the reinforcing hole of road or dam foundation, and the anchoring hole for landslide prevention projects.

1. With large rotary torque and long feed travel, the hydraulic crawler geothermal drilling rig comes with high hole drilling speed and high working efficiency.
2. The output spindle of the power head is designed with an extension mechanism (Chinese patent number: ZL03222451.6), which effectively protects the drilling tools.
3. The power head of the drilling rig utilizes hydraulic gear-shifting mechanism which ensures quick, convenient and reliable gear-shift.
4. Features such as our hydraulic drill pipe clamp and wrench devices ease the workload of operators, as they are designed to accomplish tasks that typically had to be done manually.
5. The hydraulic crawler geothermal drilling rig is mounted on a track chassis with a turning platform mechanism, which makes moving and traveling convenient.
6. The key hydraulic elements are all acquired from national and international famous enterprises. This ensures the reliable performance and durability of the drilling equipment.
7. The machine is suitable for a variety of drilling technique and methods, such as the rotary drill, auger drill, air drive DTH hammer impact and so on.
8. The drilling rig can be installed with an optional rod lifting device to connect drill rods.

1) Hole Depth: 150~80 m
2) Hole Diameter: Φ130~250 m
3) Drill Rod Standard: Φ89×3000 mm; Φ127×3000 mm
4) Power Head Rotary Speed (forward / reverse) : 40/80
5) Power Head Max Output Torque: 6000 Nm
6) Power Head Feed Travel: 3500 mm
7) Max. Power Head Lifting Capability: 55 kN
8) Max. Power Head Thrust Force: 40 kN
9) Mast Sliding Compensating Stroke: 500 mm
10) Turning Range of Platform: 360º
11) Climbing Ability: 20º
12) Engine Power (Either One)
Electromotor: 37 kW
Diesel: 71 kW
13) Overall Dimension (Reduce Type) : About 5800×2200×2300mm
14) Total Weight : About 5000kg
15) Optional Equipment
a) 1.1 ton tool winch (with crown pulley)
b) BW-250 Mud pump
c) Wet method dust cleaner device
d) Rod lifting device
e) High speed 4-speed power head: 180rph

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional hydraulic crawler geothermal drilling rig manufacturer in China, we also offer hydraulic crawler water well drilling rig, hydraulic crawler drilling rig, underground drilling rig, exploration hydraulic core drilling rig, core drilling rig, and more.
