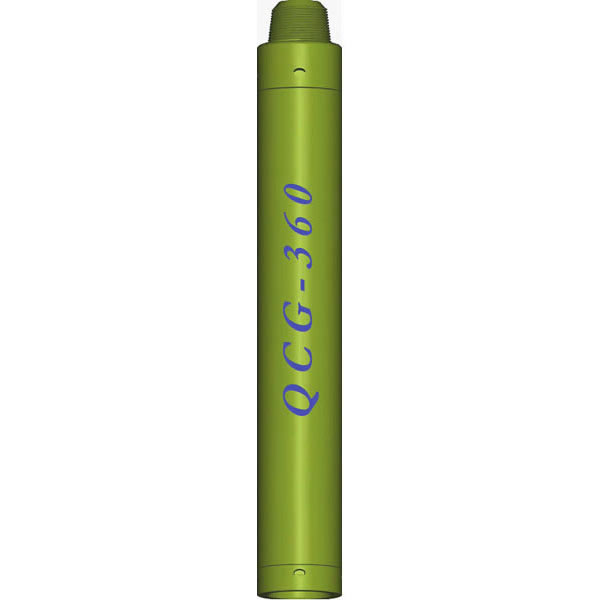

DTH Hammer (Middle/High Pressure)

Jinfan middle and high pressure DTH hammer has high drilling speed, and requires the least airflow in work. With wearable piston case, this drilling tool has stable quality and long service life.
With above advantages, it is commonly used in geotechnical engineering fields for hole making in middle and high hardness rock layers.

1. The DTH hammer has a strong air system which allows the hammer to use all the high pressure air for deslagging rock powder, so as to clean the hole end. By surface hardening, the service life of wearable outer tube is largely extended.
2. Air quantity adjusting system design allows the drill tool to have different air flux according to different rock hardness, abrasion resistance and drilling availability. Thus, the down-the-hole hammer can achieve to best deslagging performance and increase hole making efficiency.
3. Simple structure, less composition and wearable parts extends the service life of the DTH hammer effectively.
4. Multi-step thread is used to connect the front connector with the outer tube, which makes the uninstalling of button bit easy.


Model QCG-330 QCG-340 QCG-350 QCG-355 QCG-360 QCG-380
Diameter(mm) Φ82~85 Φ105~130 Φ130~152 Φ130~152 Φ152~305 Φ203~350
Hammer length(mm) 867 1052 1387 1220 1450 1551
External diameter(mm) Φ71 Φ92 Φ114 Φ124 Φ136 Φ181
Weight(Kg) 19 38 69 74 126 277
Working pressure(MPa) 0.8~2.1 0.8~2.1 0.8~2.1 0.8~2.1 0.8~2.1 0.8~2.1
Air consumption(m3/min) 3~12 3.5~18 5.7~18 6.5~18 8.5~25 12~31
Impact torque(N·M) 150 304 590 700 822 1560
Impact frequency(Hz) 13 13 13~24 13~25 14~24 14~25
Rod connection thread BOX M48.8×4.2 BOX M76×10×3 PIN M100×28×10 PIN API 2-3/8" PIN API 3-1/2 PIN API 4-1/2"

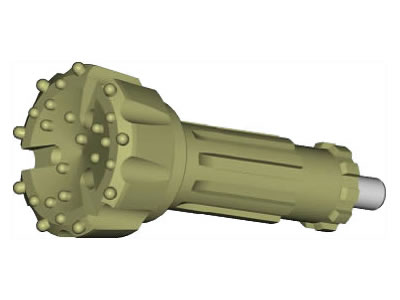

Available Button Bit Φ85; Φ105; Φ115; Φ130; Φ130; Φ140; Φ152; Φ140; Φ152; Φ152; Φ165; Φ178; Φ194; Φ203; Φ216; Φ230; Φ254; Φ203; Φ216; Φ230; Φ254; Φ310; Φ350;
